Easy maintenance gold mining equipment portable rock crusher for stone quarry

Product Description

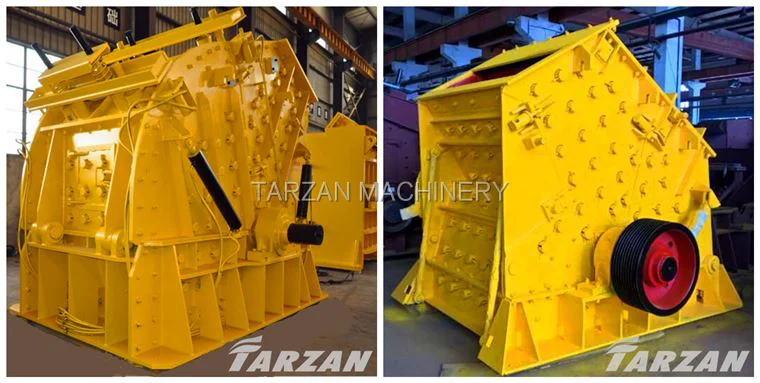

 Brief introduction of Shanghai Tarzan hydraulic impact crusher  :

Modern mining industry need high crushing ratio crushers. Shanghai Tarzan new designed  PFW series hydraulic  impact crushers can meet this particular requirement. As we all know, it is very common that mining equipment are frequently broken after a long-term use, so Tarzan machinery engineering team adopt advanced techniques to make our impact crushers more suitable. If you are eager to find efficient impact crusher for sale, you should take our PFW impact crusher into your consideration.
its outstanding feature is heavy-duty rotor design, unique fixing device for blow bar, quick system of replacement of wearing parts and easy maintenance/ repair.  It is widely used in industries of metallurgy, mining, cement, chemical, refractory, and also widely used in highway constructions, water conservancy projects, building waste and sand processing, etc.

Shanghai Tarzan hydraulic impact crusher Features:

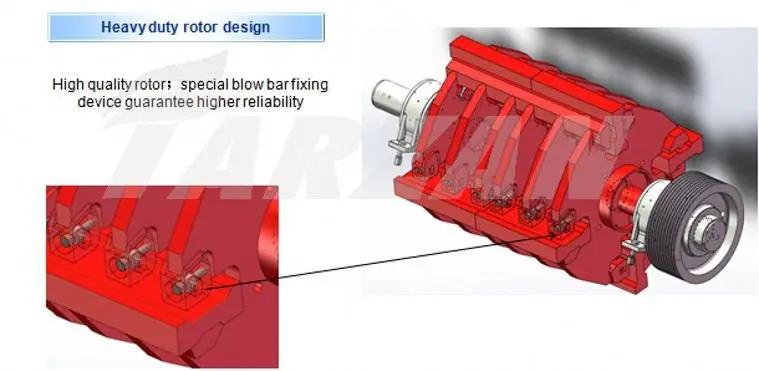

1. heavy-duty rotor design, unique fixing device for blow bar, with big processing capacity.

2. It adopts hydraulic control system to quickly adjust the size of the discharge port and discharge material size.

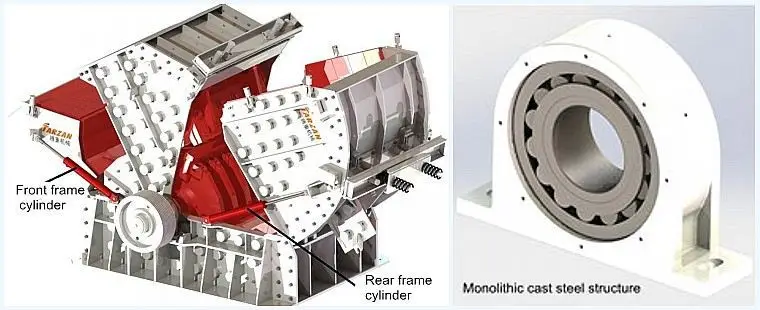

3. Automatic hydraulic open-top device can quickly finish the replacement of the blow bar and other wearing parts.
4. low investment, large output, easy maintenance and nice shape of finished products, etc.

5. cast steel structure, high bearing capacity

7.Low cost and save much time.
8.Easy operation and maintenance

9.Uniform and nice product shape

Shanghai Tarzan hydraulic impact crusher application :
PFW impact crusher often widely used in the secondary crushing and fine crushing. It is very suitable for open-pit crushing in quarries and it has wide materials applications. It can be used to crush feldspar, coal, quartz, calcite cement and other ore-bearing stones, etc.


Shanghai Tarzan hydraulic impact crusher working principle :
When PFW impact crusher works, materials are crushed by the high-speed impact of the blow bar after they enter the cavity, they will be fed into the impact plates for secondary crushing, then the materials will be shot back to the blow bar again for the third crushing. Repeat this movement until the materials are crushed to the required particle size and finally will discharged from discharging port. The size and shape of the finished material can be changed by adjusting the gap between the impact rack and rotor support.

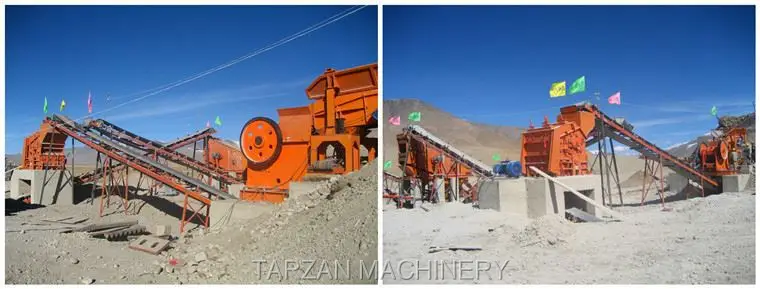

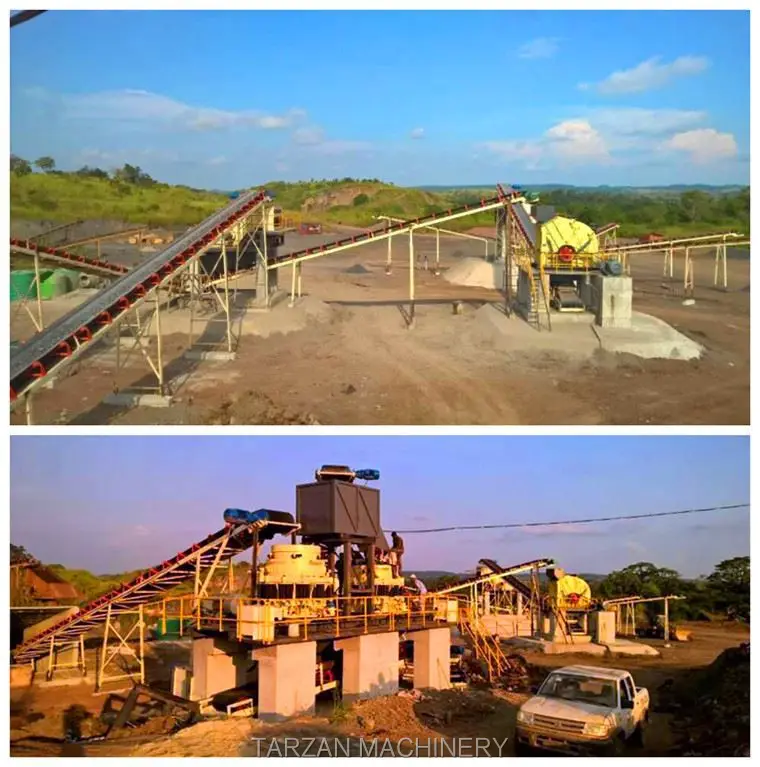

Shanghai Tarzan hydraulic impact crusher customer site  :

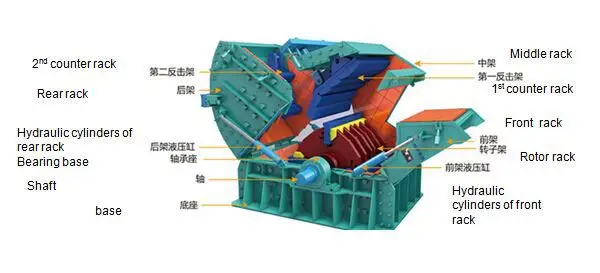

Shanghai Tarzan hydraulic impact crusher structure and specification:

Model	Rotor Dia.	Rotor length	Max feed	Capacity	Power	Weight
	(MM)	(MM)	(MM)	(T/H)	(KW)	(KG)
PFW1313	1280	1340	≤200	160~220	132~200	19800
PFW1315	1540	1500	≤300	320~380	280~315	30000

Our Services

1)  Pre-sale service:Freely provide project designing, process designing, select suitable equipment for you.
2)  Order execution service: Provide equipment layout draw, foundation draw and detail equipment manauls. Timely report you the manufacturing schedule and related photos for keep monitoring.
3)  After-sales service: Dispatch engineer to the site to guide installation, debugging and training operators. Installation operation workers are offered if you need.

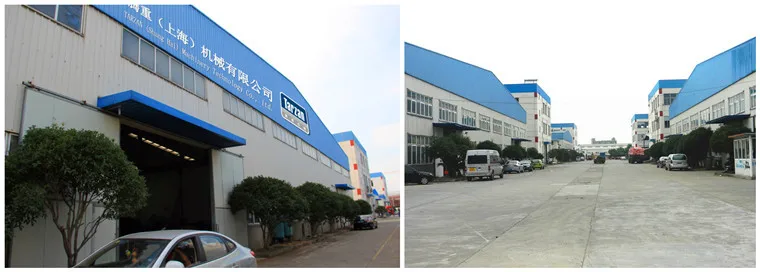

Company Information

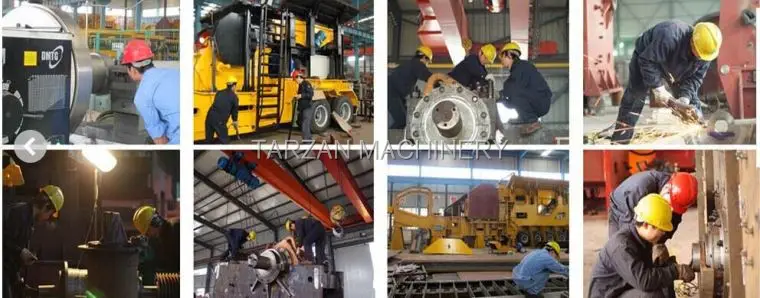

Tarzan (Shanghai) Machinery Technology Co., Ltd is a large manufacturer which business covers equipment R & D, manufacturing, crushing equipment selling, dry sand equipment manufacturing and environmental protection equipment manufacturing. Our factory is located in Fengxian District, Shanghai, China.

Employing the top staffs, establishing the top company, creating the top brand, and providing the top service, we are doing our best to make our company to be the top one in China. Tarzan always keeps in mind of “honesty, high quality & first class “when we sell our equipment or present our service. By this way we can meet the increasingly diversified customer requirement and creating more value for users.
